Name: Cannondale Scalpel 4 Deore XT 12 Speed Full Suspension Mountain Bike
SKU: 343045

Hold on Tight 

Thrill ride. With the most advanced XC suspension and geometry, and rowdy-ready spec, the new Cannondale Scalpel 4 Deore XT 12 Speed Full Suspension Mountain Bike redefines cross-country speed – again.

Model Description

Taking aim at XC race podiums and technical trails alike, the Cannondale Scalpel 4 Deore XT 12 Speed Full Suspension Mountain Bike is always down for fast. It’s built on our advanced Series 1 carbon construction frameset, then set up with a Shimano Deore/XT 12-speed drivetrain, RockShox SID suspension both front and rear, and Stan’s NoTubes Crest S2 rims for reliable speed and control.

What it's for

The thrill of speed. Winning XC and Marathon races is what Cannondale Scalpel 4 is all about! High-speed trail slaying.

Highlights

Superlight premium Series 1 Carbon frame with FlexPivot, 120mm travel, and Proportional Response-Tuned Suspension and Geometry
RockShox SID 120mm fork and SIDLuxe Select rear shock
Shimano’s race-ready Deore M6100 12-speed shifting, with an XT rear derailleur
Powerful, reliable Shimano MT501 hydraulic disc brakes
Stan’s tubeless-ready Crest S2 rims with Maxxis Rekon Race and Aspen WT 2.4” tires
Cannondale’s DownLow dropper seatpost

Travel Advisory

Not just more travel – better travel. Thanks to the magic of Cannondale's FlexPivot kinematics and Proportional Response suspension, Scalpel’s 120mm of travel delivers unreal traction, more control, and a hell of a lot more fun – with all the efficiency and responsiveness you’d expect from a World Cup race rig.

Devilishly Fast

Speed starts with the geometry, and Scalpel’s got the hole shot. It has a slack 66.6º head tube angle, a steeper 75.5º seat tube angle, and chainstays that get longer as the frames get bigger to keep the rider more balanced between the wheels. The result? More power and traction on the climbs, more pinpoint control in the corners, and a whole new level of confidence at speed.

The Beauty of Speed

This ain’t no fashion statement. This is pure, purposeful design. Every element of the Scalpel’s form is driven by function above all – kinematics, weight, stiffness, and capability. Features drive the shape, instead of the shape constraining the features. And fast looks good.

Specifications

Platform - Scalpel
Model Name - Scalpel 4
Model Code - C24554U

FRAMESET

Frame - Scalpel, Series 1 Carbon construction, 120mm travel, Proportional Response Suspension and Geometry, FlexPivot Chainstay, full internal cable routing, 73mm BSA, 1.5" headtube with 1-1/8" upper reducer/internal cable guide, 148x12mm thru axle, 55mm chainline, UDH, post-mount disc – 160mm native
Fork - RockShox SID, 120mm, Debonair, 15x110mm thru-axle, tapered steerer, 44mm offset
Headset - Acros ICR
Rear Shock - RockShox SIDLuxe Select , 2-Pos mode adjust, adjustable rebound, 190x45

DRIVETRAIN

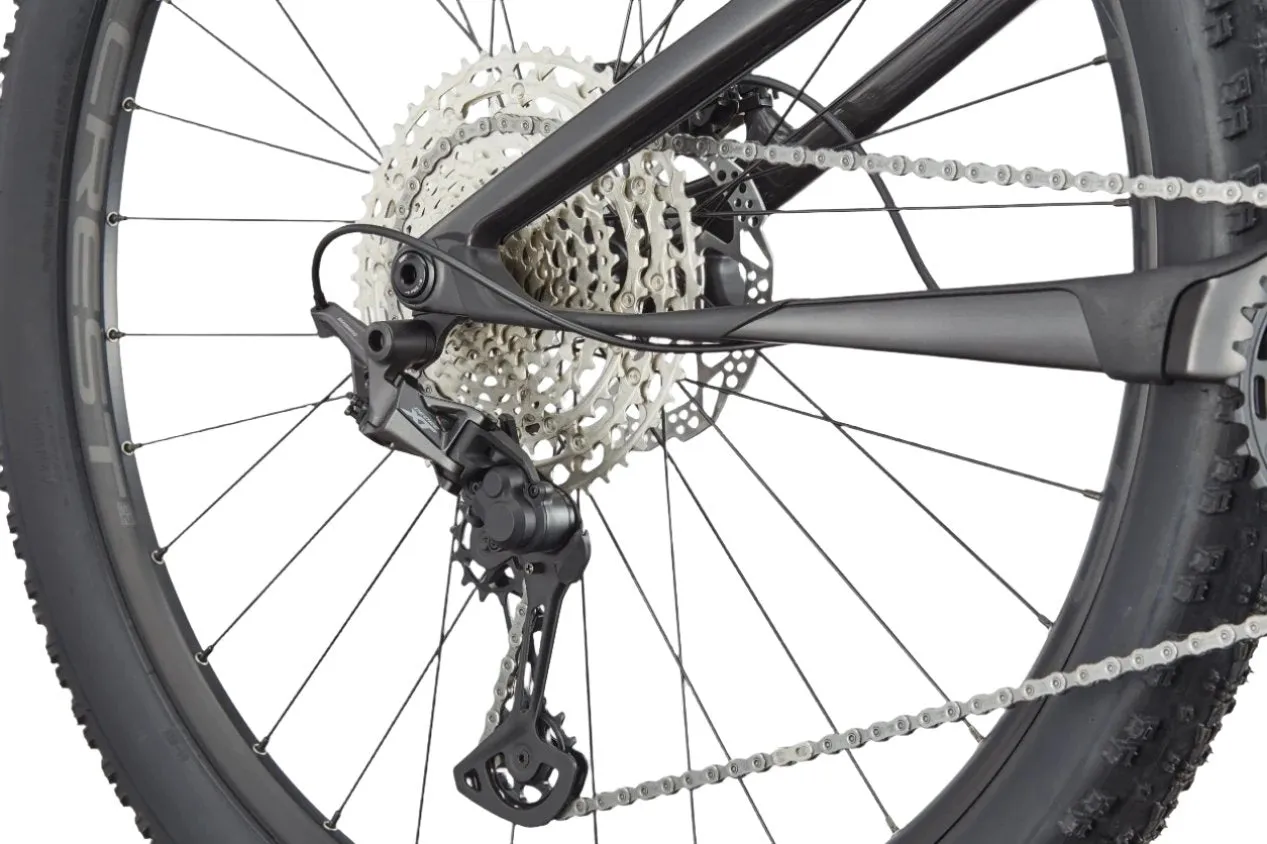

Rear Derailleur - Shimano XT
Shifters - Shimano Deore 6100, 12-speed
Chain - Shimano Deore, 12-speed
Crank - Shimano M5121, 32T
Rear Cogs - Shimano Deore, 10-51, 12-speed
Bottom Bracket - Shimano BSA 73mm

BRAKES

Brakes - Shimano MT501 hydraulic disc, 180/160mm RT54 rotors
Brake Levers - Shimano MT501 hydraulic disc

WHEELS

Rims - Stan's NoTubes Crest S2, 32h, tubeless ready
Spokes - Stainless Steel, 14g
Tire Size - 2.4
Wheel Size - 29
Hubs - (Front) Shimano TC-500, 15x110mm thru-axle / (Rear) Shimano MT410B, 12x148mm thru-axle
Tires - (Front) Maxxis Rekon Race WT, 29x2.4", EXO Protection, tubeless ready / (Rear) Maxxis Aspen WT, 29x2.4", EXO Protection, tubeless ready

COMPONENTS

Handlebar - Cannondale 2 Flat, butted 2014 Alloy, 31.8mm, 3° rise, 8° sweep, 760mm
Stem - Cannondale C1 Conceal, Alloy, 31.8, -6°
Grips - Cannondale XC Silicone
Saddle - Prologo Dimension NDR, STN rails
Seatpost - Cannondale DownLow Dropper, internal routing, 31.6, 125mm (S), 150mm (M-XL)
